Vehicle Information:

Beschreibung

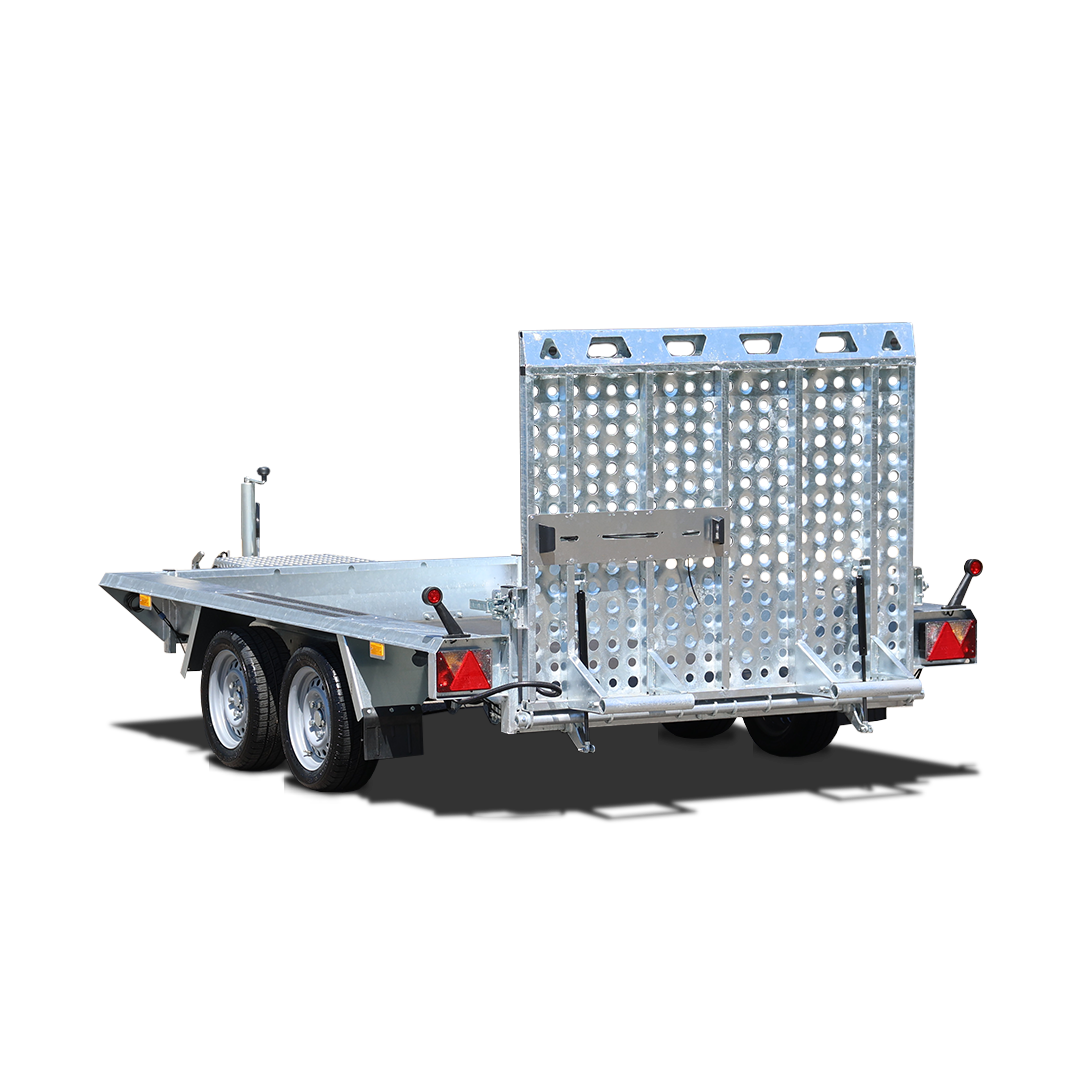

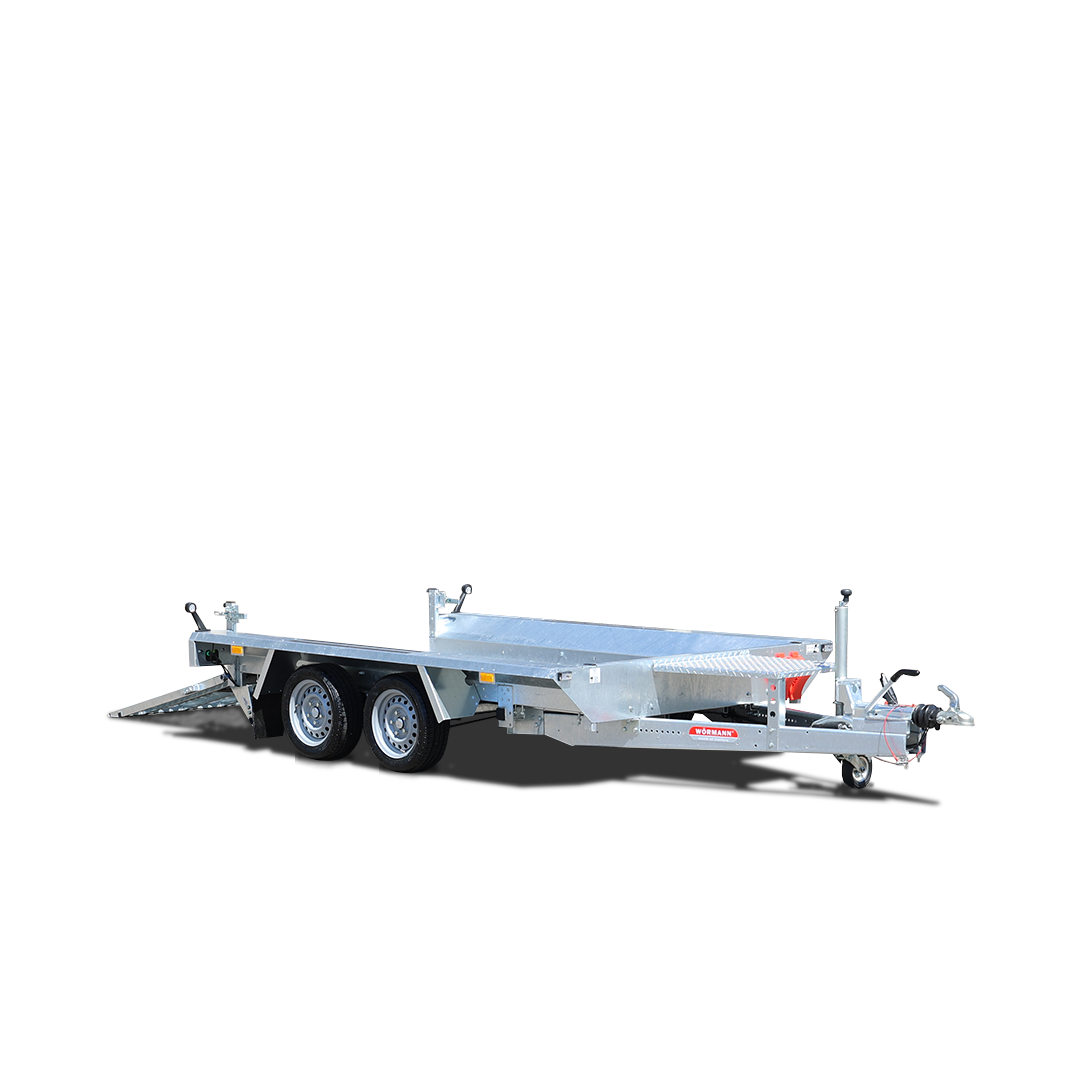

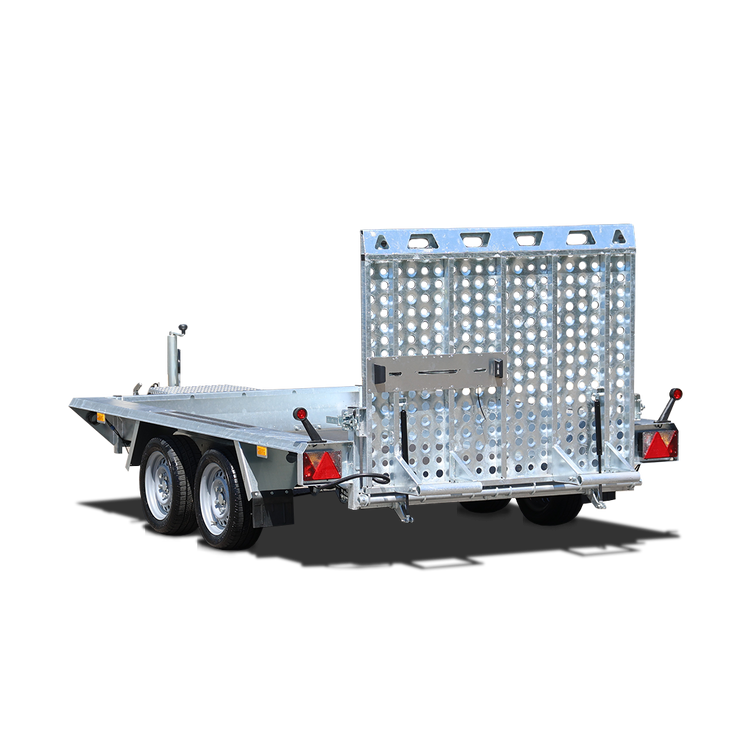

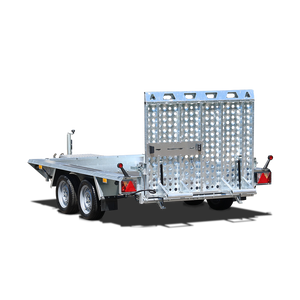

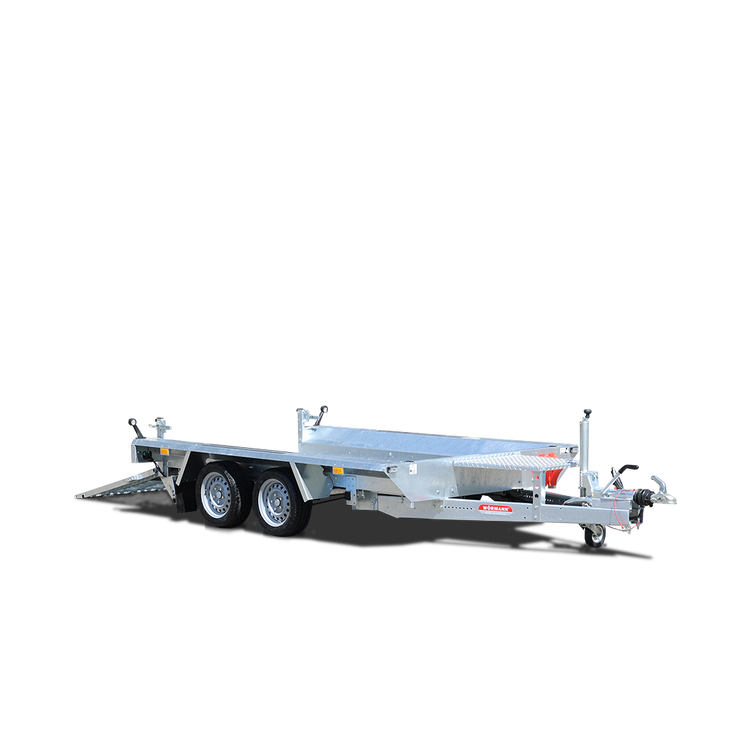

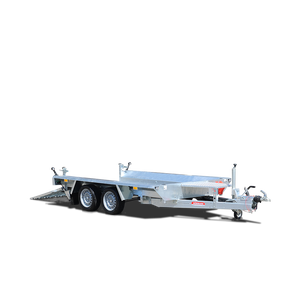

Orus 2730/150\nTrailer
Technische Daten
Ladefläche
Länge (mm): 3000
Breite (mm): 1500
Höhe (mm): 250
Durchfahrtshöhe (mm): k.A
Ladehöhe (mm): k.A
Gesamtmaße
Ges. Länge (mm): k.A
Ges. Breite (mm): k.A
Ges. Höhe (mm): k.A
Gewicht
Eigengewicht (kg): 620
Zul. Gesamtgewicht (kg): 2700
Nutzlast (kg): 805.0
Zurrpunkte: k.A
Zurrpunkte Art:
Fahrwerk
Anzahl der Achsen: 2
Gebremst: k.A
Bereifung: 195 50 R 13" C
Serienausstattung

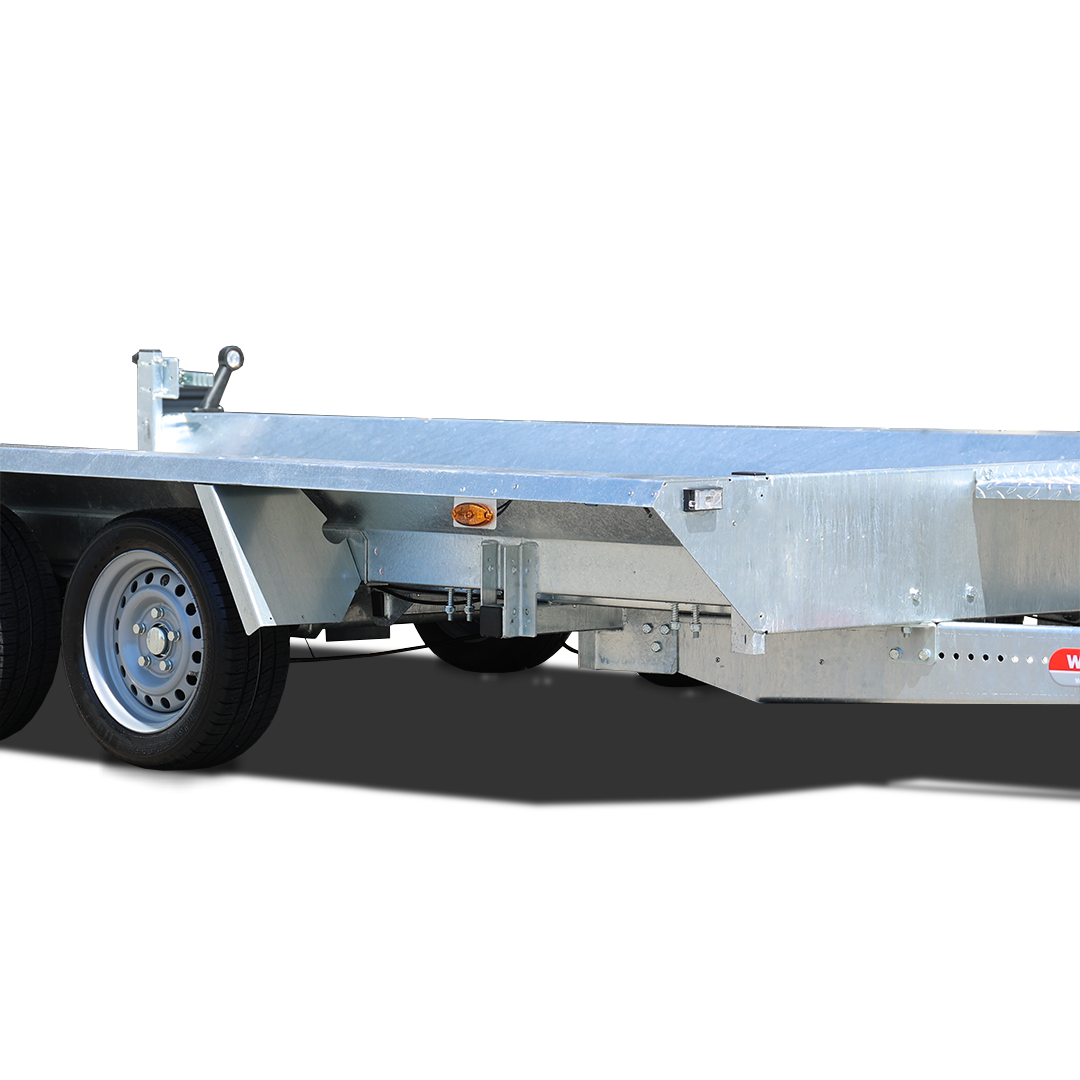

Axle Continuous maintenance-free commercial axle with reinforced long supports, hot-dip galvanized

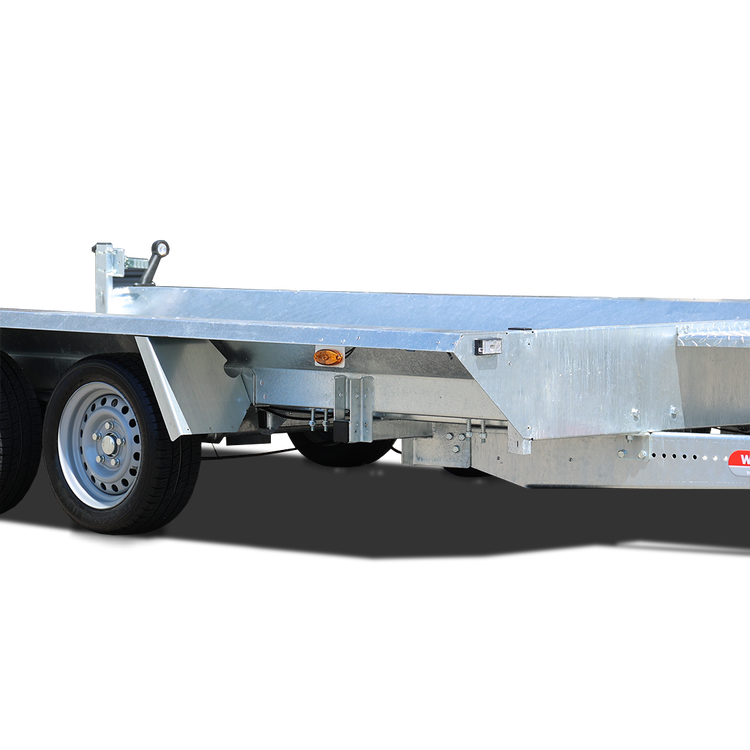

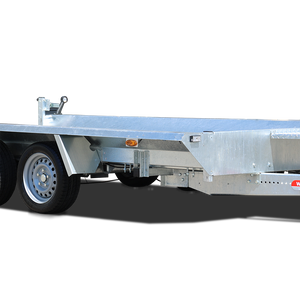

Suspension Independent wheel suspension with long spring travel, high inherent damping and soft springing
Wheel bearings Maintenance-free, water-protected double-row high-performance compact bearings
Brake 4-wheel overrun brake with fully automatic reverse and parking brake, corrosion-resistant, asbestos-free brake linings, galvanized wheel brake internal parts
Mudguard Robust, tread-proof steel mudguard with tread plate extension over the entire body length approx. 250 mm wide

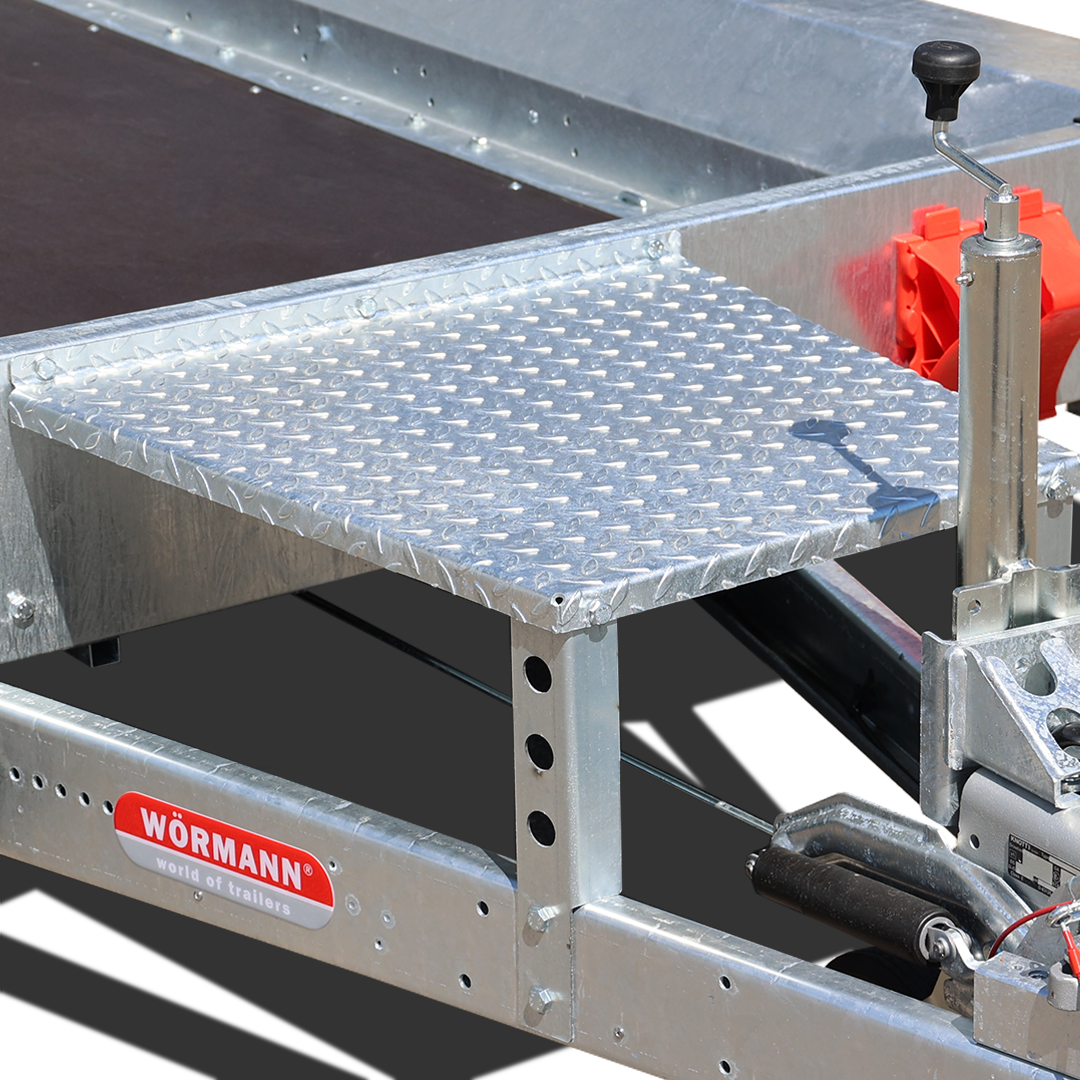

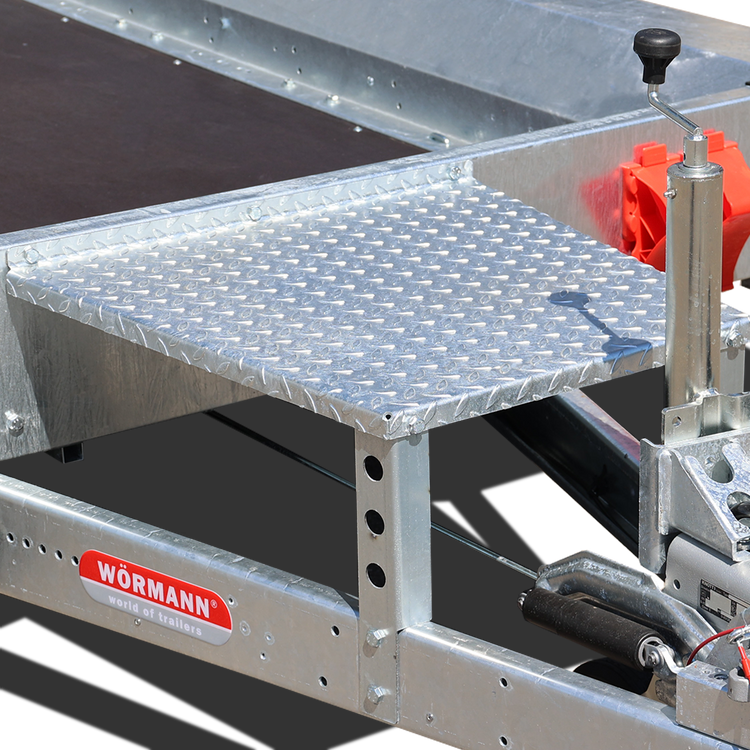

Drawbar V-drawbar bolted, storage plate for excavator bucket over the drawbar
Jockey wheel Reinforced automatic jockey wheel, height adjustable
Coupling Automatic coupling with safety and wear indicator
Body reinforced welded steel frame, hot-dip galvanized

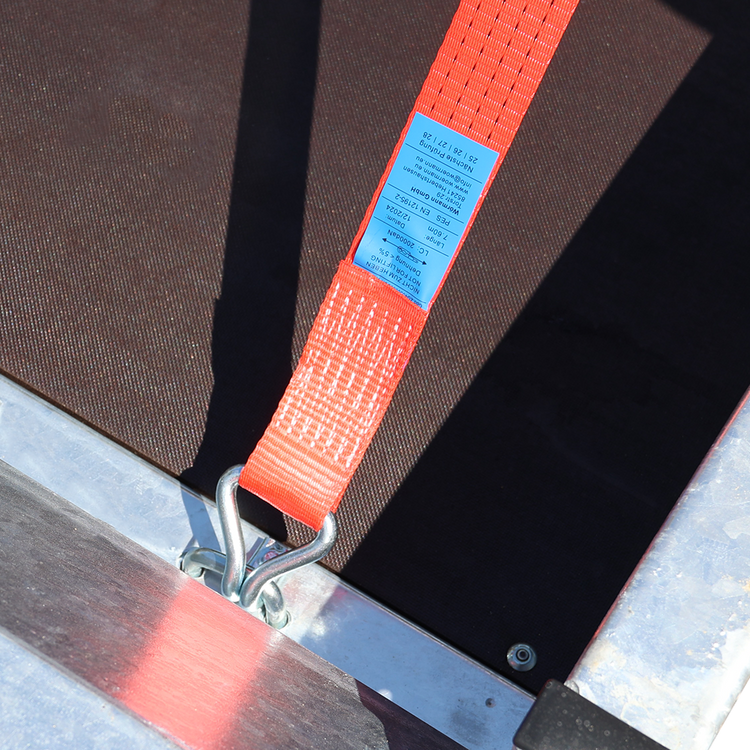

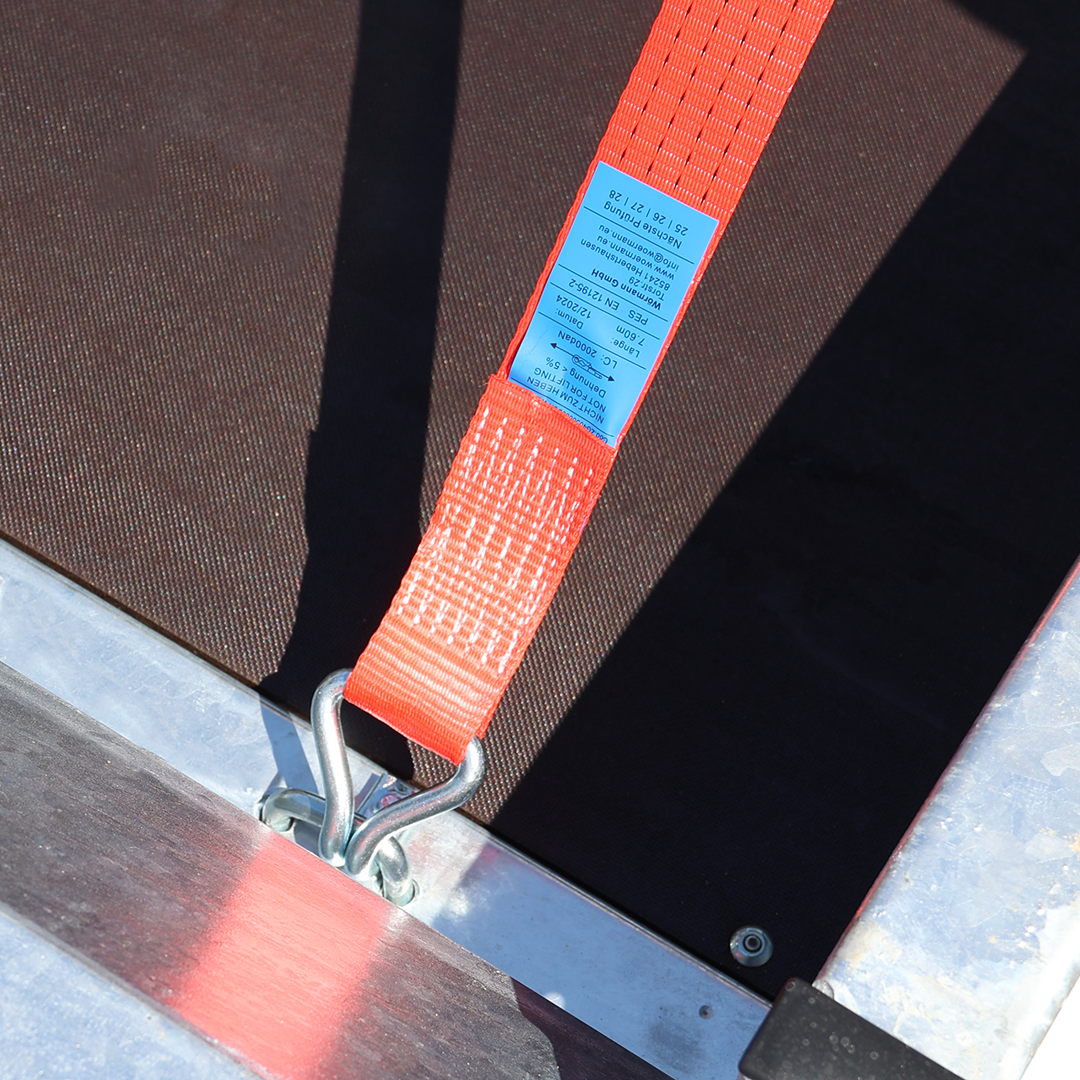

Floor Special screen-printed floor with non-slip coating, waterproof glued, 6 lashing rings
Sidewalls Side walls and front wall made of high-quality steel, with profiled rubbing strake, approx. 250 mm high, hot-dip galvanized

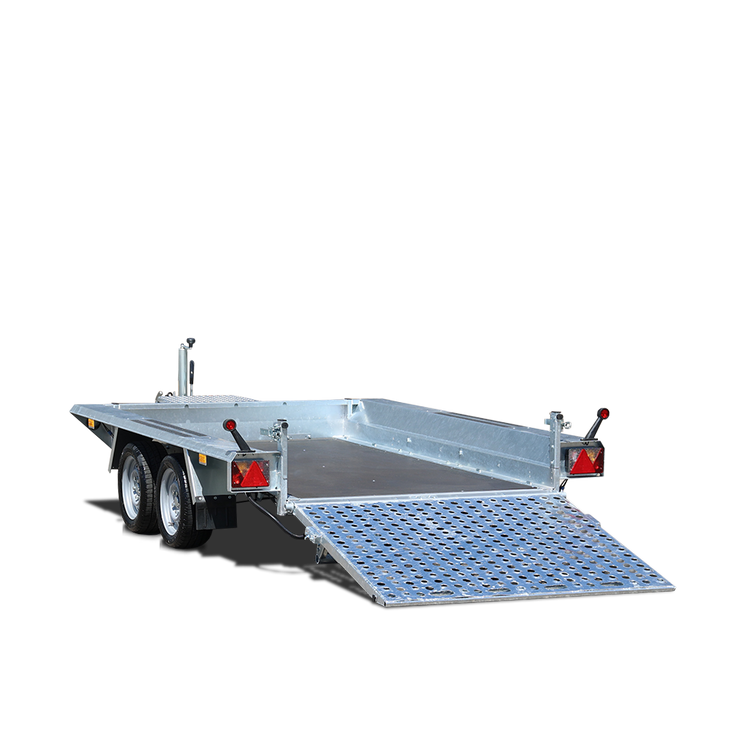

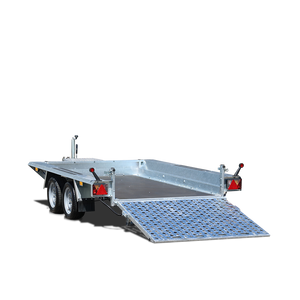

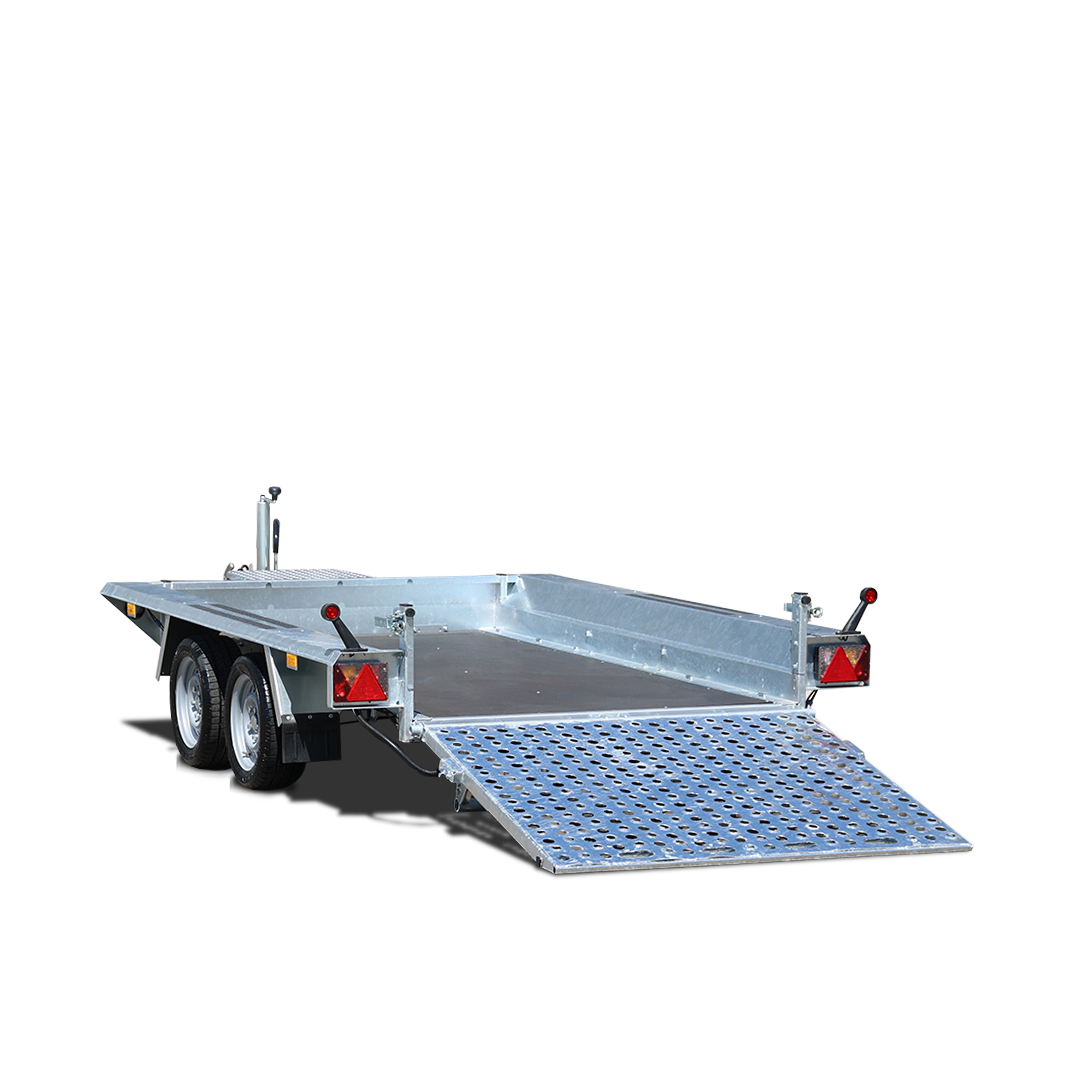

Loading ramps Reinforced continuous steel mesh ramps with integrated loading tip and ground support spring lifting mechanism

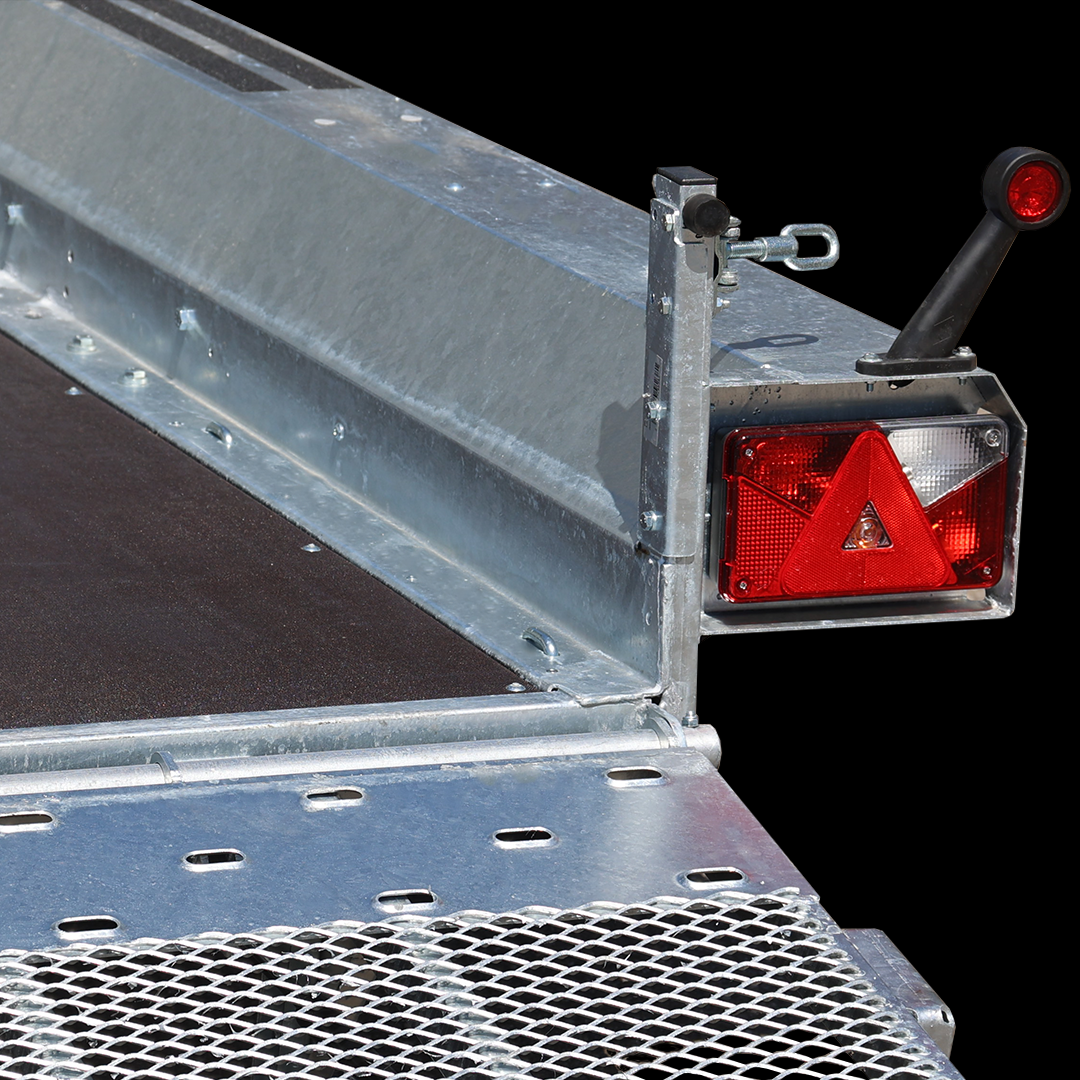

Lighting Lighting according to German Road Traffic Licensing Regulations (StVZO). 12 Volt, 13-pin, large 4-chamber lights with tail, brake and indicator lights, rear fog light with integrated triangular reflector and license plate illumination, yellow side reflectors left and right, cabling and lights mounted protected

Orus

Choose your desired configuration:
Choose your desired configuration:

Selected Accessories:

    Business: Überweisung

    Fahrzeugpreis

    £3,454.00

    exkl. MwSt.

    Kaufpreis

    £2,902.00

    exkl. MwSt.

    exkl. MwSt.

    exkl. MwSt.
    2-year factory warranty
    First-Class After-Sales Service
    We can customize the vehicle to your specific requirements. Please feel free to contact our sales consultants!
